VERTICAL INLINE PUMP
VERTICAL INLINE PUMP

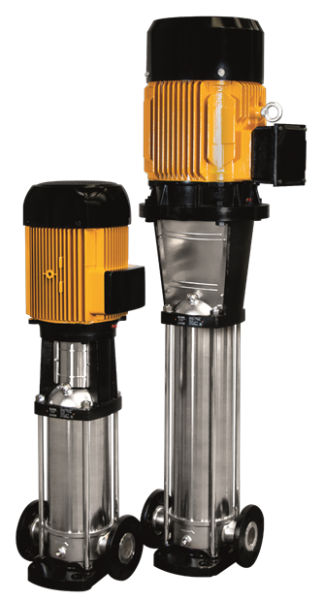

MUSAK vertical inline multistage pump is a type of centrifugal pump that uses multiple impellers (at least two) mounted on a single, vertical shaft to increase fluid pressure. These pumps are designed for applications requiring high pressure and are characterized by their compact, vertical installation where the suction and discharge ports are in line with each other.
Applications
- Boosting water pressure in Reverse osmosis systems , water softner and ultra filtration systems.
- Hydropneumatic pressure boosting systems and wate transfer systems
- Sprinkler irrigation systems for Golf courses , Sports stadiums and Agricultural fields
- Boiler feeding and Industrial washing/ Cleaning systems
- Pressure Boosting Applications
Features
- All wetted parts are made of high grade corrosion resistant stainless steel and highly suitable to use in R.O Systems for drinking water.
- Catridge type mechanical seal for easy maintenance and minimum downtime Incase of replacements.
- AC induction motor with F class insulation suitable of continuous duty
Specifications
| RANGE | 0.37 to 75 Kw (Three phase) , 0.37 to 2.2 kw ( Single Phase) |
|---|---|
| Enclosure class | IP55 |
| Insulation class | Class F |
| Head | Up to 300 meters |
| Discharge | Up to 2000 LPM |
| Speed | 2880 RPM |
