HIGH SPEED MINI MONOBLOCK
HIGH SPEED MINI MONOBLOCK

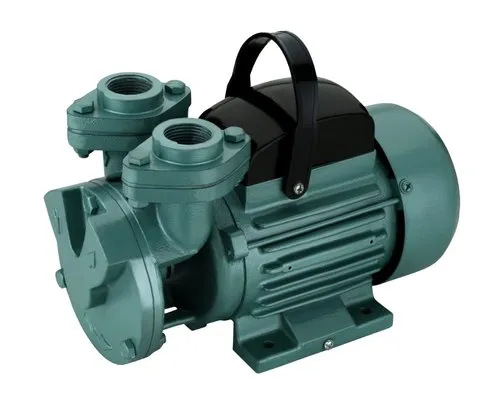

MUSAK High speed self priming pumps are designed for high discharge at higher heads , Impeller is made of brass, Pump casing and motor body are made of castiron ensure reliability and durability
Applications
- Domestic water supply
- Deeper Suction
- Dewatering
Features
- All casting components are machined on CNC machines with very close tolerances which reduce noise and increase product life..
- Motor is protected by thermal overload protector (TOP).
- High performance product with low power consumption.
- Motor winding & stamping with synthetic varnish for better moisture resistance.
- Adequate & un-obstructed self priming capacity due to excellent hydraulic design & workmanship
Specifications
| RANGE | 0.5HP – 1.0HP |
|---|---|
| SUPPLY | Single phase 180-240 Volts ,50Hz AC Supply |
| HEAD RANGE | Up to 39m |
| Discharge | Up to 56 Lpm |
| Outlet size | 25mm x 25 mm |
| Speed | 1440 RPM /2880 RPM |
| Seal | Mechanical Seal |
