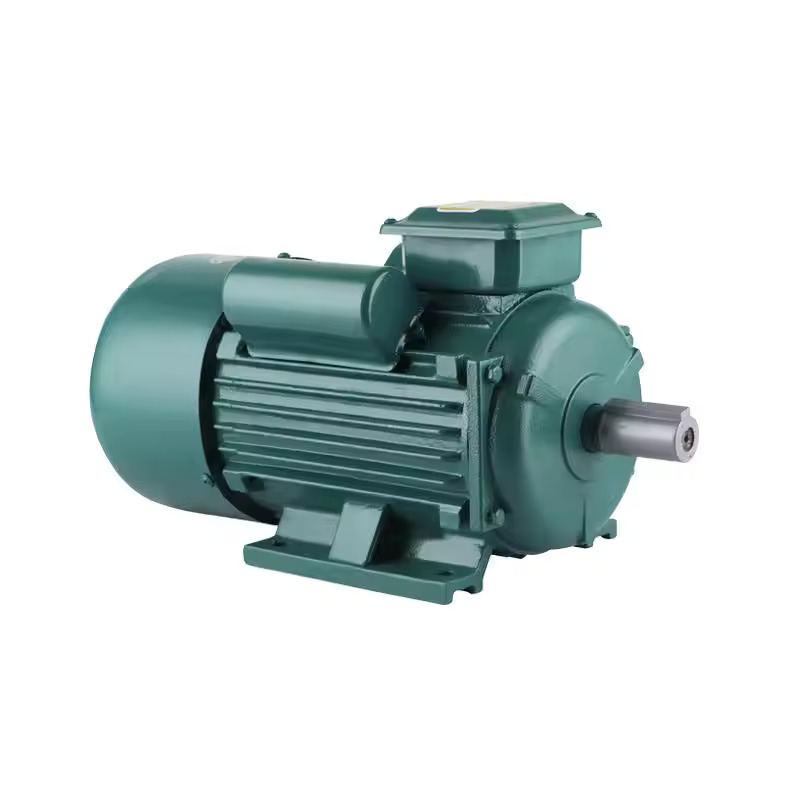

musak three phase electric motor
musak three phase electric motor
MUSAK offer a comprehensive range of highly reliable three phase motors energy efficient IE2, IE3 & range of Super Premium IE4 for various applications in domestic, Agriculture .& Industries adopting world-class technology and meet statutory compliance and quality standards set with E , A and F CLASS insulations as per the desired 3000 RPM ( 2 POLE) ,1500RPM (4POLE), 1000 RPM (6 POLE ) & 750 RPM (8 POLE)
Applications
- Heavy industries
- Power looms
- Sugar Cane Crushers
- Rice and Flour Mills
- Food processing machineries
- Domestic use (for Wheat, Gram, daals, baajra grinding machines)
- Agriculture and Farming machines
- Wood cutting machines
- Textile machines
- Industrial use
- Aqua culture farms
- machine tool
- pump
- gear box
- chemical processing
- textile machines
- Agriculture field
- stone crushers
- mineral processing
- industries
- compressor
- pulversors
Features
- Low watt loss CRNGO High silicon steel.
- Super enabled dual coated copper wire and “ F” Class Copper Wire.
- Double sealed ball bearings lubricated for life with high quality grease.
- Dynamic balancing with high precision balancing machines resulting in low vibratin in motors.
- Saves energy & money
- Near uniform efficiency from 50% to 100% of full load ensuring energy savings even at part load conditions also
- Short payback period
- Substantial savings after payback period.
Specifications
| Efficiency class | IE 2 , IE 3 (PREMIUM EFFICIENCY) & IE4 SUPER PREMIUM EFFIECIENCY |
|---|---|
| MOTOR TYPE | AC Three Phase Squirrel Cage Induction Motor |
| ENCLOSURE | TEFC |
Foot mount
- B3 - Horizontal foot mounted,
- B6 - Horizontal wall mounted,
- B7 - Horizontal wall mounted (RHS),
- B8 - Horizontal ceiling mounted,
- V5 - Wall mounted shaft down wards,
- V6 - Wall mounted shaft up wards,
- B34 - Horizontal base flange type ‘C’
Flange mount
- B5 - Flange type ‘D’
- V1 - Vertical down wards flange type ‘D’
- V3 - Vertical up wards flange type ‘D’
- B35 - Horizontal base flange type ‘D’
- B14 - Horizontal face flange type ‘C’
- V18 - Vertical face down wards flange type ‘C’
- V19 - Vertical face up wards flange type ‘C’
Details
- DEGREE OF PROTECTION : IP56 ,IP55 ,IP54 ,IP44 ,IP23 , IP22 and IP21
- Class of Insulation : Class B , F and H
- Duty / Rating : S1 / Continuous
- Cooling : Shaft Mounted Fan
- OUT PUT RANGE – 0.18 to 75 KW
- VOLTAGE - 415±10%
- POLES - 2 ,4,6 8
- SPEED RANGE : -750RPM TO 3000 RPM
- RPM FREQUENCY – 50Hz to 60Hz
- Ambient Temp - 50 degree Centigrade
