centrifugal monoblock
centrifugal monoblock

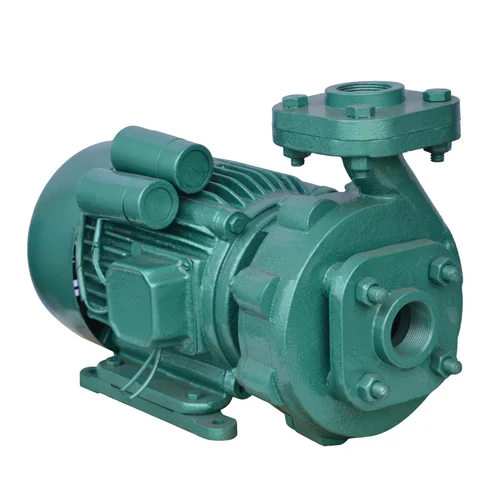

Centrifugal Monobloc Pumps are characterized by a common motor and pump shaft and the pump casing is bolted to the front cover of the motor. They are the undisputed choice in numerous agriculture and industrial applications
Applications
- Deep or shallow openwell pumping with suction Lift.
- River and Canal lift irrigation pumping a Sprinkler and drip irrigation systems.
- Filter point pumping lndustrial water supply and transfer.
- CooLing water circulating systems a Pressure boosting in multi-storey buildings.
Features
- MUSAK Agricutural Monoblock Pumps are rugged reliable and are built to withstand tough conditions like low voltage and high suction Lifts.
- A very wide range of Monoblocks to suit a variety of operating points are available
- Rigid Cast iron volute casing and balanced impeller
- Stainless steel shaft sleeve with Gunmetal / Stainless Steel packing gland and stainless steel studs .
- Brass impeller lock nuts .
- Larger ball bearings for better life .
- Dynamically balanced rotors
Specifications
| RANGE | 0.5HP – 30HP |
|---|---|
| SUPPLY | Single phase 180-240 Volts ,50Hz & Three phase 380 -415 Volts AC Supply |
| HEAD RANGE | Up to 95 meteres |
| Discharge | Up to 4600 Lpm |
| Speed | 1440 RPM & 2880 RPM |
| FREQUENCY | 50 Hz |
