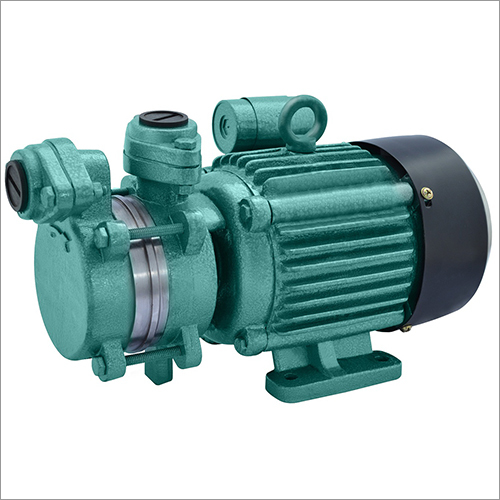

MAGIC SUCTION PUMP
MAGIC SUCTION PUMP
MUSAK Self Priming Mini Monoblock pumps are made of high quality extruded aluminium body , dynamically balanced rotor and brass impeller and cast iron casing ensure user safety energy efficient and reliability
Applications
- Domestic water supply
- Gardening
- Dewatering
Features
- All casting components are machined on CNC machines with very close tolerances which reduce noise and increase product life.
- Balanced and rigid construction.
- Motor is protected by thermal overload protector (TOP).
- High performance product with low power consumption.
- Motor winding & stamping with synthetic varnish for better moisture resistance.
- Adequate & un-obstructed self priming capacity due to excellent hydraulic design & workmanship
- Better aesthetics with compact design
Specifications
| RANGE | 0.5HP – 1.0HP |
|---|---|
| SUPPLY | Single phase 180-240 Volts ,50Hz AC Supply |
| HEAD RANGE | Up to 40m |
| Discharge | Up to 45 Lpm |
| Speed | 2880 RPM |
| Outlet size | 25mm x 25 mm |
| Seal | Mechanical Seal |
| Priming Time | 120 seconds |
