SELF PRIMING MONOBLOCK
SELF PRIMING MONOBLOCK

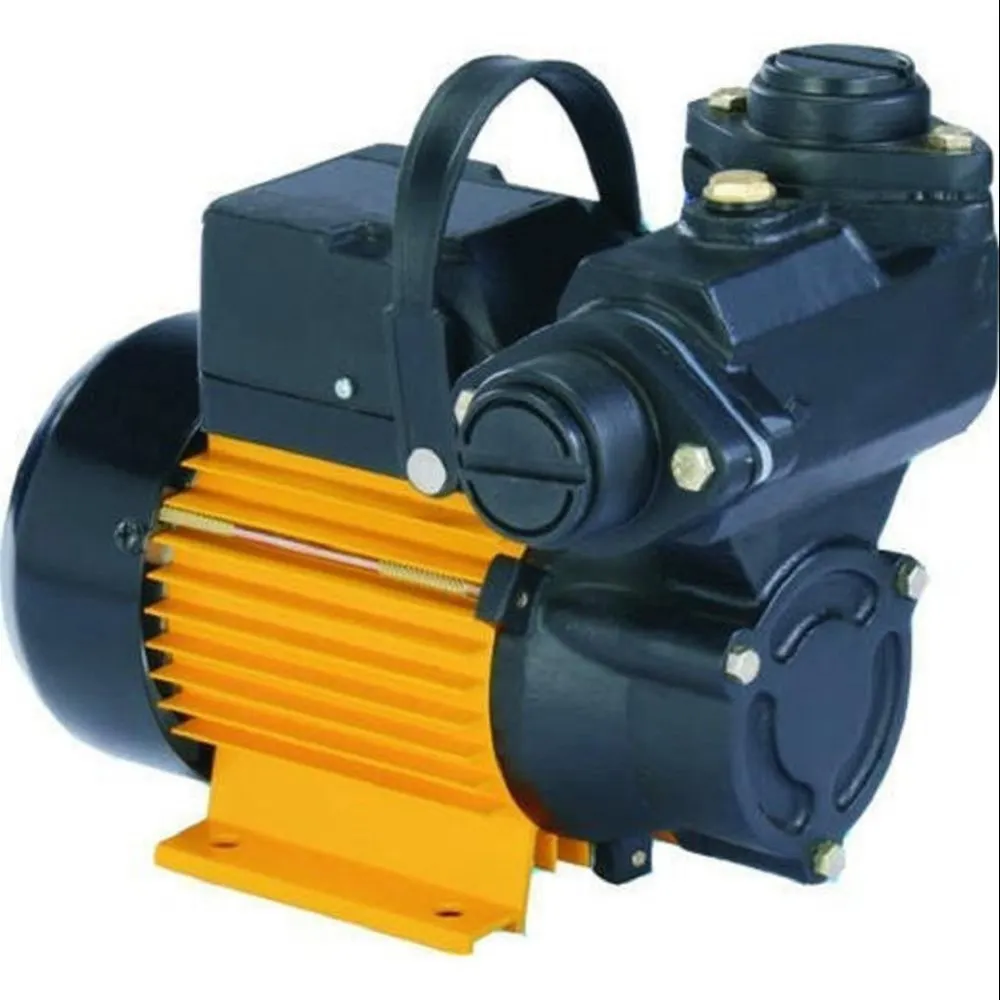

MUSAK Self Priming Mini Monoblock pumps are made of high quality extruded aluminium body , dynamically balanced rotor and brass impeller and cast iron casing ensure user safety energy efficient and reliability
Applications
- Domestic water supply
- Gardening
- Dewatering
Features
- All casting components are machined on CNC machines with very close tolerances which reduce noise and increase product life.
- Balanced and rigid construction.
- Motor is protected by thermal overload protector (TOP).
- High performance product with low power consumption.
- Motor winding & stamping with synthetic varnish for better moisture resistance.
- Adequate & un-obstructed self priming capacity due to excellent hydraulic design & workmanship
- Better aesthetics with compact design
Specifications
| RANGE | 0.5HP – 1.0HP |
|---|---|
| SUPPLY | Single phase 180-240 Volts ,50Hz AC Supply |
| HEAD RANGE | Up to 40m |
| Discharge | Up to 45 Lpm |
| Speed | 2880 RPM |
| Outlet size | 25mm x 25 mm |
| Seal | Mechanical Seal |
Our Models
Explore Our Pump Range
Musak Premium
- HP Range
- 2 - 15 HP
- Flow Range
- 1.5 - 19.5 LPS
- Head Range
- 13 - 248 MTRS
- Speed
- 2880 RPM
- Voltage
- 350 - 440 Volts
56 Models Available
Musak Smart
- HP Range
- 3 - 7.5 HP
- Flow Range
- 1.5 - 7.5 LPS
- Head Range
- 21 - 178 MTRS
- Speed
- 2880 RPM
- Voltage
- 250 - 400 Volts
16 Models Available
Musak Magic
- HP Range
- 3 - 25 HP
- Flow Range
- 1.4 - 19.5 LPS
- Head Range
- 14 - 440 MTRS
- Speed
- 2880 RPM
- Voltage
- 200 - 440 Volts
131 Models Available
Musak Ultra
- HP Range
- 4 - 30 HP
- Flow Range
- 1.7 - 20.5 LPS
- Head Range
- 15 - 440 MTRS
- Speed
- 2880 RPM
- Voltage
- 200 - 440 Volts
